Make
FOTON
Model
FR 150-7 (FR Series)
Engine
DT

  • Find a Dealer
  • Email
  • Print
  • New Search

Engine (DT) (Isuzu 4BG1TRP, 4.0L; 73.5kW)

Recommendation

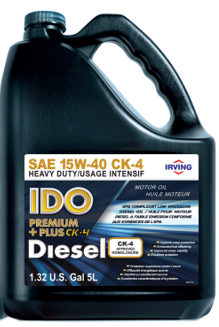

1st Choice IDO Premium Plus CK-4 15W-40
Product Details
SDS (Canada)
SDS (US)
IDO Premium Plus CK-4 next generation oil was formulated to exceed compliance levels set forth by the EPA for 2017 and forward diesel engines.
IDO Premium Plus CK-4 15W-40

Click to Enlarge

Oil Change Intervals

Hours Max 250

Capacity

3.43 (gal)

Notes

  • a. >5°F
  • b. Alternative recommendations, -22°F to 86°F: IDO Premium Plus CK-4 Synthetic Blend 10W-30 / IDO Premium Plus CK-4 10W-30
  • c. Alternative recommendations, >5°F: Please refer to owner’s manual, there is no Irving Blending & Packaging product recommended.
Transmission

Recommendation

From Hydraulics
Coolant (engine only)

Recommendation

1st Choice Please refer to owner’s manual, there is no Irving Blending & Packaging product recommended.

Oil Change Intervals

Hours Max 1000

Capacity

2.25 (gal)

Notes

  • d. Mix ratio, 50% >-40°C
Hydraulics

Recommendation

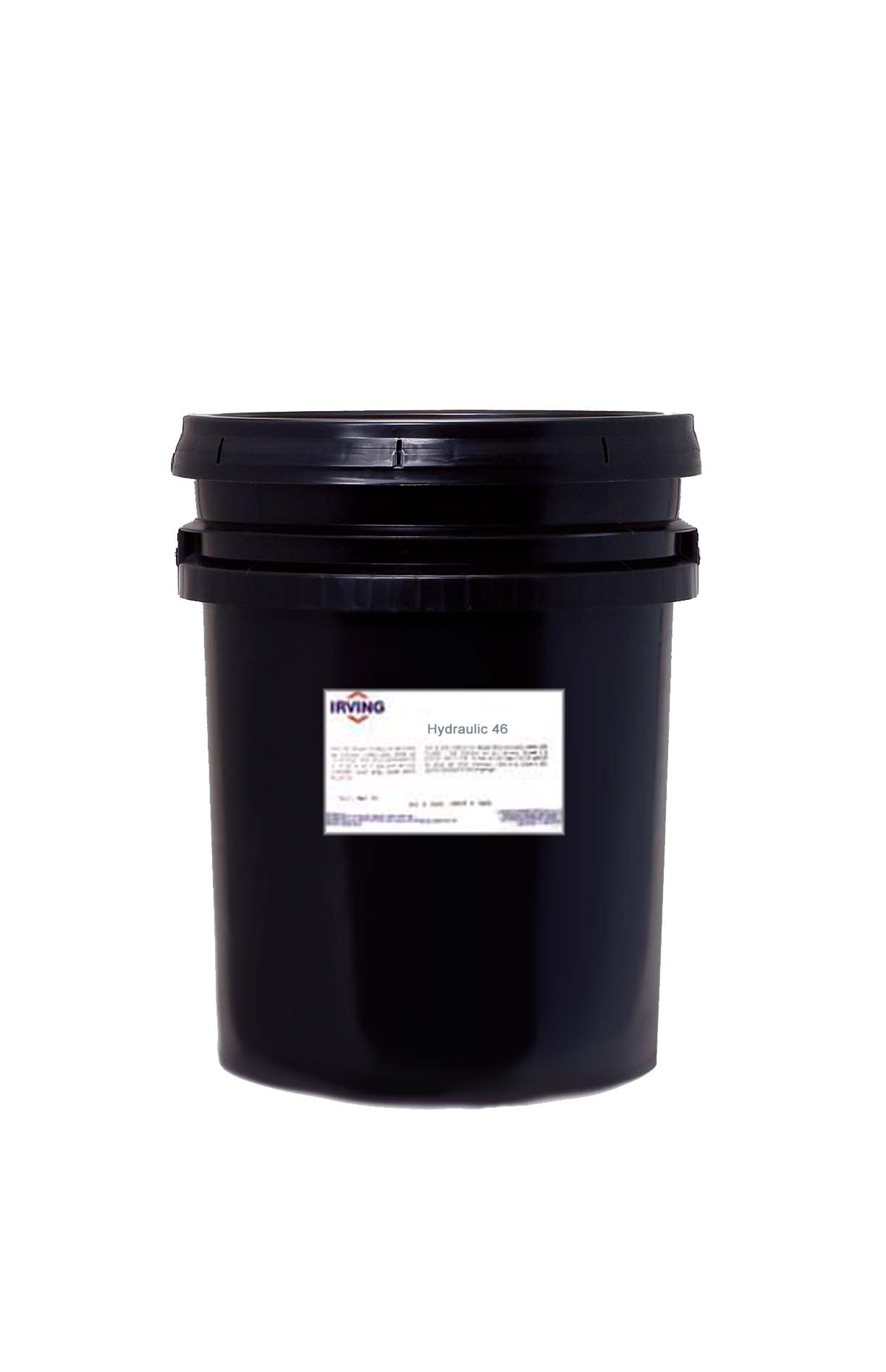

1st Choice HYDRAULIC HP 46 Premium Synthetic
Product Details
SDS (Canada)
HYDRAULIC HP PREMIUM is a high performance 100% synthetic anti-wear hydraulic fluid developed to provide extended service life and year round performance. The synthetic base oil and superior additive chemistry offers advanced wear protection, corrosion protection and was designed for use in hydrostatic systems commonly used in construction and forestry equipment.
HYDRAULIC HP 46 Premium Synthetic

Click to Enlarge
2nd Choice HYDRAULIC HP 46 High Performance Hydraulic Oil
Product Details
SDS (Canada)
HYDRAULIC HP is a high performance, multi-grade, anti-wear, synthetic hydraulic fluid developed to provide extended service life and year round performance. The synthetic base oil and superior additive chemistry offers advanced wear protection, corrosion protection and doubles the service life compared to typical hydraulic fluids. Modern hydraulic system designs utilize smaller fluid reservoirs placing an even greater demand on the hydraulic
HYDRAULIC HP 46 High Performance Hydraulic Oil

Click to Enlarge
3rd Choice HYDRAULIC LP 46 Low Pour Hydraulic Oil
Product Details
SDS (Canada)
SDS (US)
HYDRAULIC LOW POUR oils are high performance, multi-grade, anti-wear hydraulic oils. They offer the same wear and corrosion protection as traditional hydraulic oils, but operate over a wider range of operating temperatures. The usefulness of traditional hydraulic oil is limited by minimum and maximum allowable temperatures, unlike the Hydraulic LP. Low temperatures will cause traditional hydraulic oils to thicken, where it can become too viscous to feed the pump fast enough, resulting in noise and wear damage. In high temperatures the oils can become too thin, reducing the film thickness between moving parts of the machine, which increases friction and wear.
HYDRAULIC LP 46 Low Pour Hydraulic Oil

Click to Enlarge

Oil Change Intervals

Hours Max 1000

Capacity

38.3 (gal)

Notes

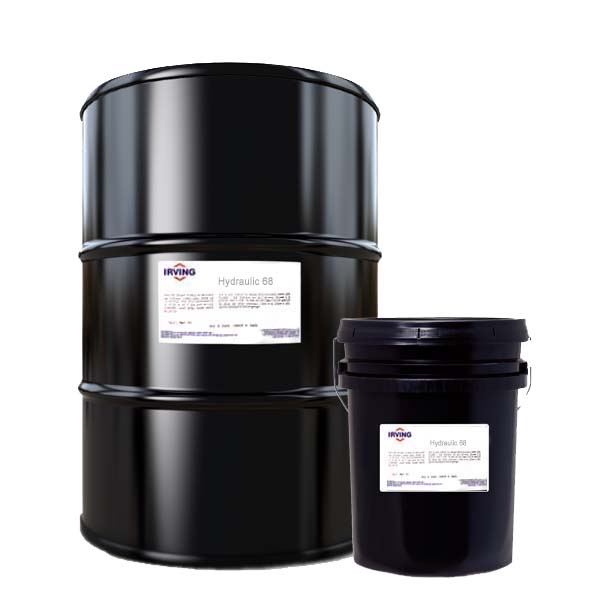

  • e. Alternative recommendations: HYDRAULIC LP 68 Low Pour Hydraulic Oil
Grease Points

Recommendation

1st Choice LUBEX EP 2 Premium Multipurpose Grease
Product Details
SDS (Canada)
LUBEX EP is premium grease developed to meet the growing demand for higher quality multipurpose grease. Its complex thickener gives a wide range of performance benefits over a variety of applications. Grease can be considered as a suspension of oil in a matrix. The matrix can be formed in oil by the reaction of an acid and a base, producing what is called soap. Complex grease is made when several different ingredients are used.
LUBEX EP 2 Premium Multipurpose Grease

Click to Enlarge
2nd Choice LUBEX MP 2 Multipurpose Grease
Product Details
SDS (Canada)
LUBEX MP Grease was developed to be high quality general purpose grease for bearing applications in commercial and consumer applications. The high quality lithium thickener provides a wide range of performance benefits over a variety of non-disc brake wheel bearing applications.
LUBEX MP 2 Multipurpose Grease

Click to Enlarge

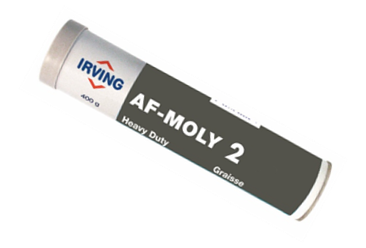

3rd Choice AF MOLY 2 3% Moly Heavy Duty Grease
Product Details
SDS (Canada)
AF MOLY is heavy-duty grease for applications where the presence of molybdenum disulfide can be helpful. AF MOLY contains 3% molybdenum disulfide, which provides dry film lubrication for load-bearing surfaces where the grease may tend to be squeezed out.
AF MOLY 2 3% Moly Heavy Duty Grease

Click to Enlarge
Swing Gear & Pinion Bearings

Recommendation

1st Choice AF MOLY 2 3% Moly Heavy Duty Grease
Product Details
SDS (Canada)
AF MOLY is heavy-duty grease for applications where the presence of molybdenum disulfide can be helpful. AF MOLY contains 3% molybdenum disulfide, which provides dry film lubrication for load-bearing surfaces where the grease may tend to be squeezed out.
AF MOLY 2 3% Moly Heavy Duty Grease

Click to Enlarge
Swing Gearbox

Recommendation

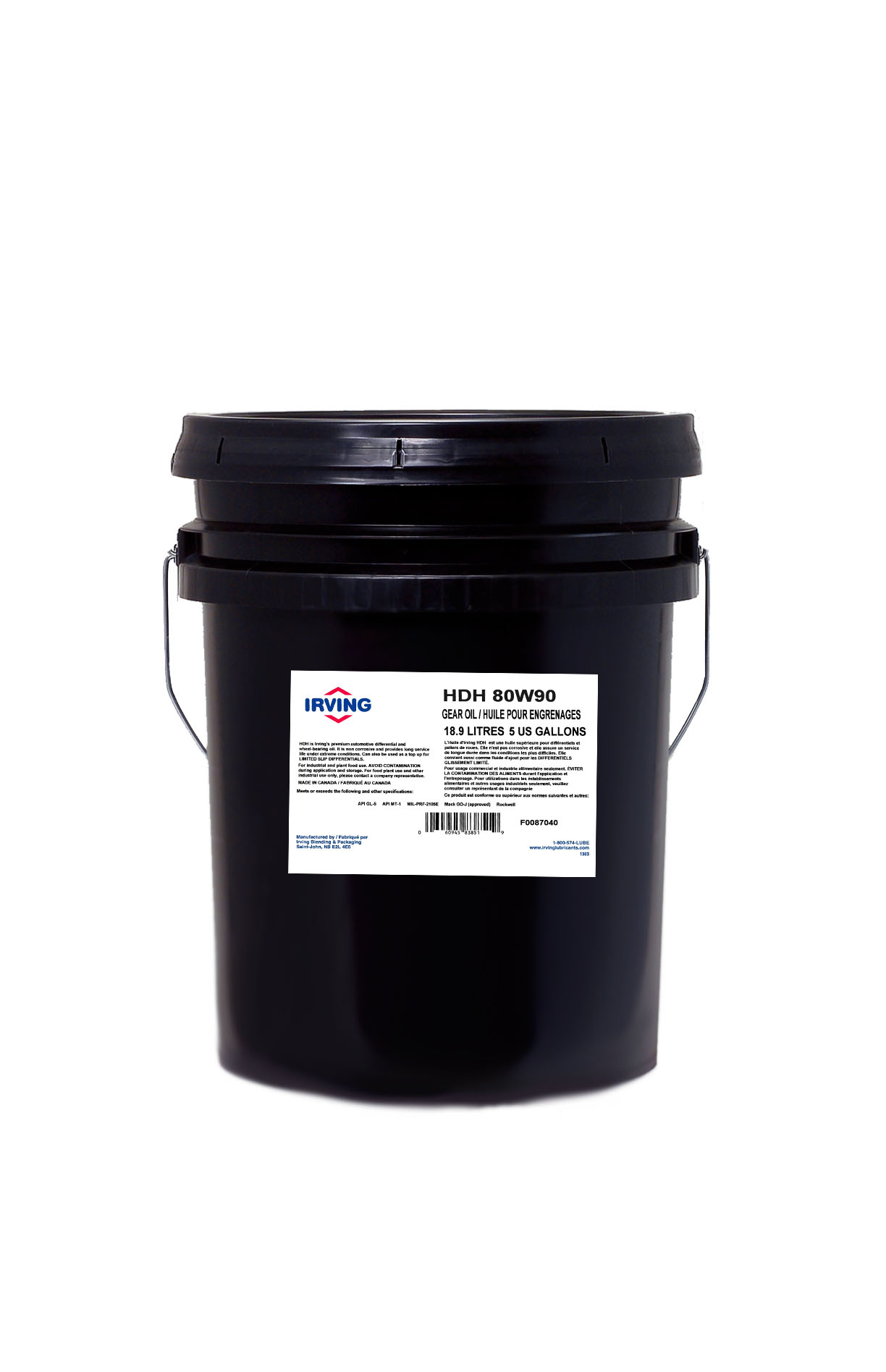

1st Choice HDH Heavy Duty Hypoid Gear Oil 80W-90
Product Details
SDS (Canada)
Irving HDH is an amber to dark coloured mineral oil. Irving HDH oils are extreme pressure (EP) automotive gear lubricants made from high quality, high viscosity index (VI) paraffinic base oils. Their special additives make them particularly effective at providing high load-carrying protection with excellent rust, corrosion and foam prevention. Excellent oxidation control and thermal stability prevents the formation of sludge and deposits, which leaves gears clean through many miles of service.
2nd Choice HDH Heavy Duty Hypoid Gear Oil 80W-90 LS
Product Details
SDS (Canada)
Irving HDH is an amber to dark coloured mineral oil. Irving HDH oils are extreme pressure (EP) automotive gear lubricants made from high quality, high viscosity index (VI) paraffinic base oils. Their special additives make them particularly effective at providing high load-carrying protection with excellent rust, corrosion and foam prevention. Excellent oxidation control and thermal stability prevents the formation of sludge and deposits, which leaves gears clean through many miles of service.
HDH Heavy Duty Hypoid Gear Oil 80W-90 LS

Click to Enlarge

Oil Change Intervals

Hours Max 1000

Notes

  • f. -13°F to 86°F
  • g. Alternative recommendations, -13°F to 104°F: Please refer to owner’s manual, there is no Irving Blending & Packaging product recommended.
Travel Gearbox

Recommendation

1st Choice HDH Heavy Duty Hypoid Gear Oil 80W-90
Product Details
SDS (Canada)
Irving HDH is an amber to dark coloured mineral oil. Irving HDH oils are extreme pressure (EP) automotive gear lubricants made from high quality, high viscosity index (VI) paraffinic base oils. Their special additives make them particularly effective at providing high load-carrying protection with excellent rust, corrosion and foam prevention. Excellent oxidation control and thermal stability prevents the formation of sludge and deposits, which leaves gears clean through many miles of service.
2nd Choice HDH Heavy Duty Hypoid Gear Oil 80W-90 LS
Product Details
SDS (Canada)
Irving HDH is an amber to dark coloured mineral oil. Irving HDH oils are extreme pressure (EP) automotive gear lubricants made from high quality, high viscosity index (VI) paraffinic base oils. Their special additives make them particularly effective at providing high load-carrying protection with excellent rust, corrosion and foam prevention. Excellent oxidation control and thermal stability prevents the formation of sludge and deposits, which leaves gears clean through many miles of service.
HDH Heavy Duty Hypoid Gear Oil 80W-90 LS

Click to Enlarge

Oil Change Intervals

Hours Max 1000

Notes

  • h. -13°F to 86°F
  • i. Alternative recommendations, -13°F to 104°F: Please refer to owner’s manual, there is no Irving Blending & Packaging product recommended.
